DYNOJET & BLR TUNING

DYNOJET POWER COMMANDER FUEL CONTROLLER PCFC FOR 2006 - 2023 YAMAHA RAPTOR 700 700R SE WITH OPTIONAL CUSTOM TUNING BY BLR TUNING

DYNOJET POWER COMMANDER FUEL CONTROLLER PCFC FOR 2006 - 2023 YAMAHA RAPTOR 700 700R SE WITH OPTIONAL CUSTOM TUNING BY BLR TUNING

$305.59 USD
$338.14 USD $305.59 USD
Sale Sold out
Shipping calculated at checkout.
DO YOU WANT CUSTOM TUNING PRE INSTALLED BY BLR TUNING ON YOUR PCFC

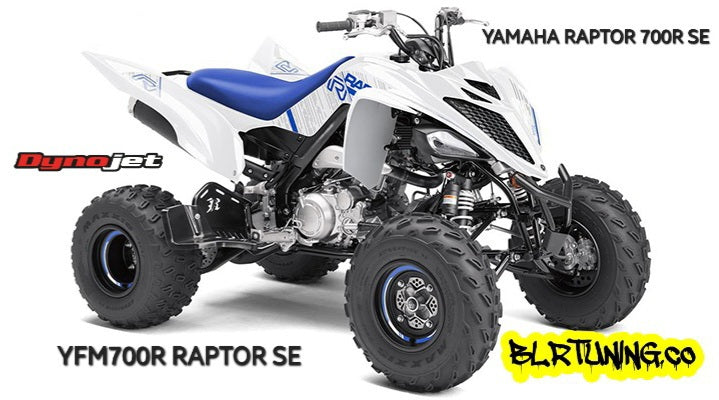

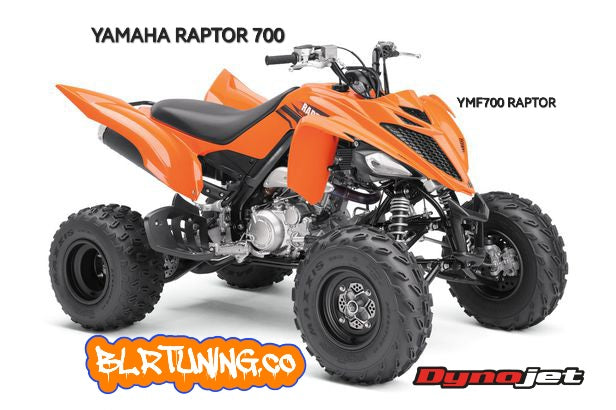

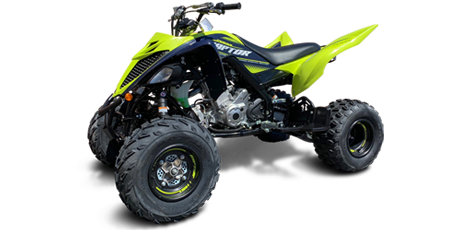

THIS IS THE DYNOJET POWER COMMANDER FUEL CONTROLLER (PCFC) FOR 2006 - 2023 YAMAHA RAPTOR 700, 700R, 700R SE, YFM700, YFM700R, YFM700R SE - WITH THE OPTION FOR CUSTOM TUNING BY BLR TUNING.

SKU# FC22002

IF YOU CHOOSE TO ADD THE CUSTOM TUNING FROM US THERE WILL BE 10 SELECTABLE MAPS INCLUDED ON YOUR PCFC.

NOTICE -WE CAN NOT SHIP THIS PRODUCT TO CALIFORNIA. IF YOU ARE ABLE TO PLACE AN ORDER AND YOUR ADDRESS IS A CALIFORNIA ADDRESS... YOUR MONEY WILL BE REFUNDED, WE WILL NOT SHIP YOUR ORDER.

TUNING IS FOR TRACK OR OFF ROAD USE ONLY

CUSTOM TUNING ADDS - $145 - INCLUDES 10 CUSTOM ADJUSTABLE MAPS INSTALLED. BUILT FOR 91 - 98 OCTANE

SHIPPING - $12.60

FITS - YAMAHA

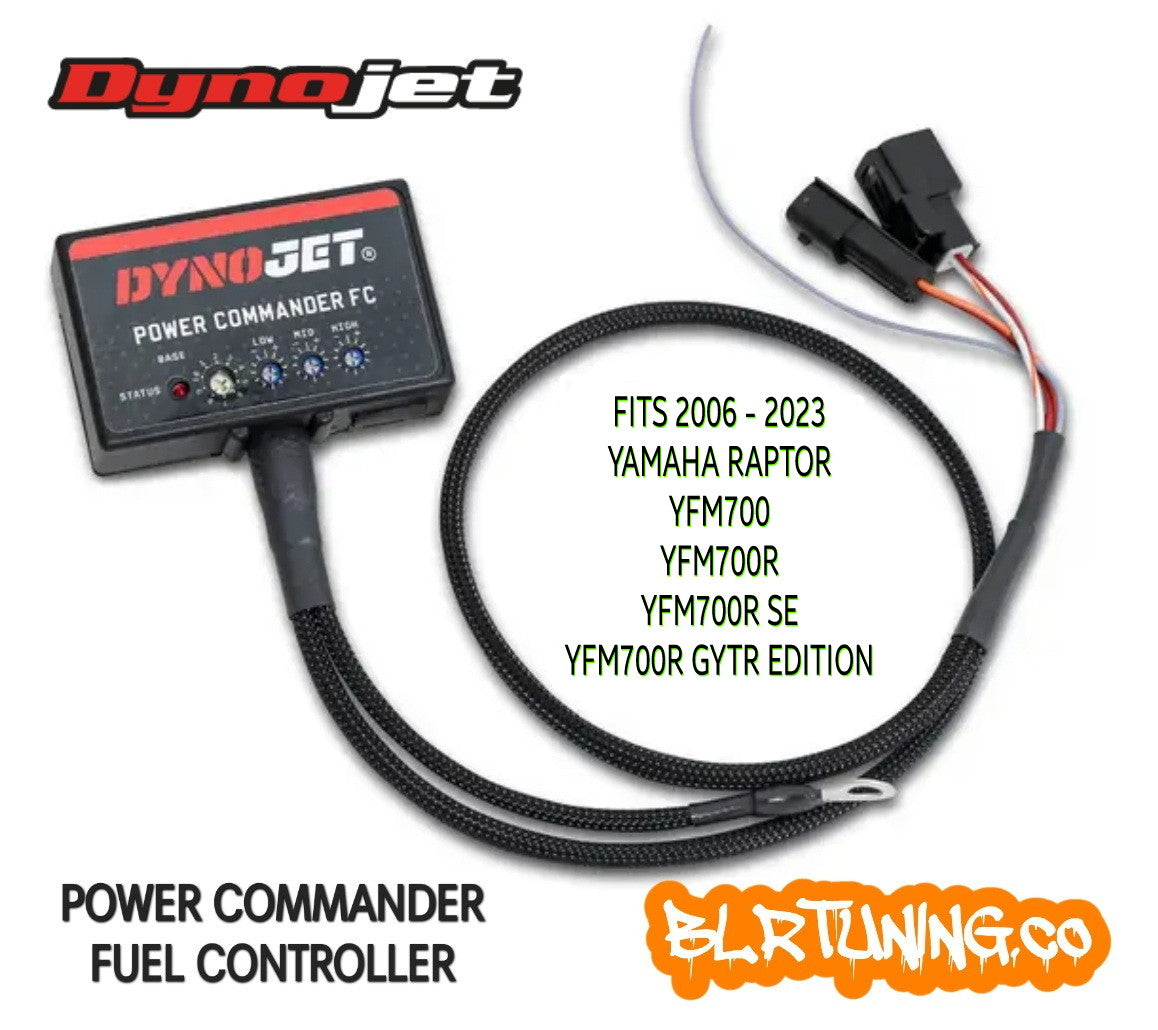

Power Commander Fuel Controller (PCFC) Inexpensive yet very precise way to control your fuel curve. The Power Commander FC is a new plug-n-play fuel management device pre-programmed with Make/ Model specific maps. In addition the Power Commander FC has the added ability to modify or change these maps on the fly without a computer. Users can literally select between a Power Commander FC Map, custom-built maps, or even fine tune low, mid or high rpm ranges while sitting on the bike and without plugging into a computer. Standard +/- 10% increments from selected map settings, different ranges are available using the supplied Control Center software. Users can also load up to 10 of their personally built Power Maps into the Power Commander FC and select between them while in the saddle - eliminating the need to "re-boot" with the computer every time a new map is desired.

Uses OEM style connectors and high quality wiring harnesses Small, lightweight and easy-to-fit on the bike Pre-programmed with PCFC Power Maps specific to make, model No computer necessary for modifying fuel management Fully adjustable computer compatibility for ultimate tuning and personalization Software is compatible with Power Commander, so you can download Power Commander maps to the PCFC +250 / -100 fuel change. Enough adjustment to cover almost all modifications Enhanced "accel pump" utility (increased adjustment and sensitivity ranges) when you need to adjust your fuel curve for quick throttle inputs. This unit does NOT work with any of the Dynojet accessories - SFM, Ignition Module, shifter, LCD.

DO YOU HAVE A DIFFERENT VEHICLE AND NEED A DYNOJET TUNING DEVICE? OR PERHAPS YOU HAVE A TUNING DEVICE ALREADY AND NEED A CUSTOM TUNE.

WE CAN HELP YOU. GIVE US A CALL OR SEND US AN EMAIL. 360-910-8377 BLRTUNING.TECH@GMAIL.COM

HERE AT BLR TUNING WE SPECIALIZE IN HIGH QUALITY, HIGH PERFORMANCE. WITH OVER 20 YEARS EXPERIENCE TUNING MOTORCYCLES. WE ARE A LICENSED DYNOJET DISTRIBUTOR.

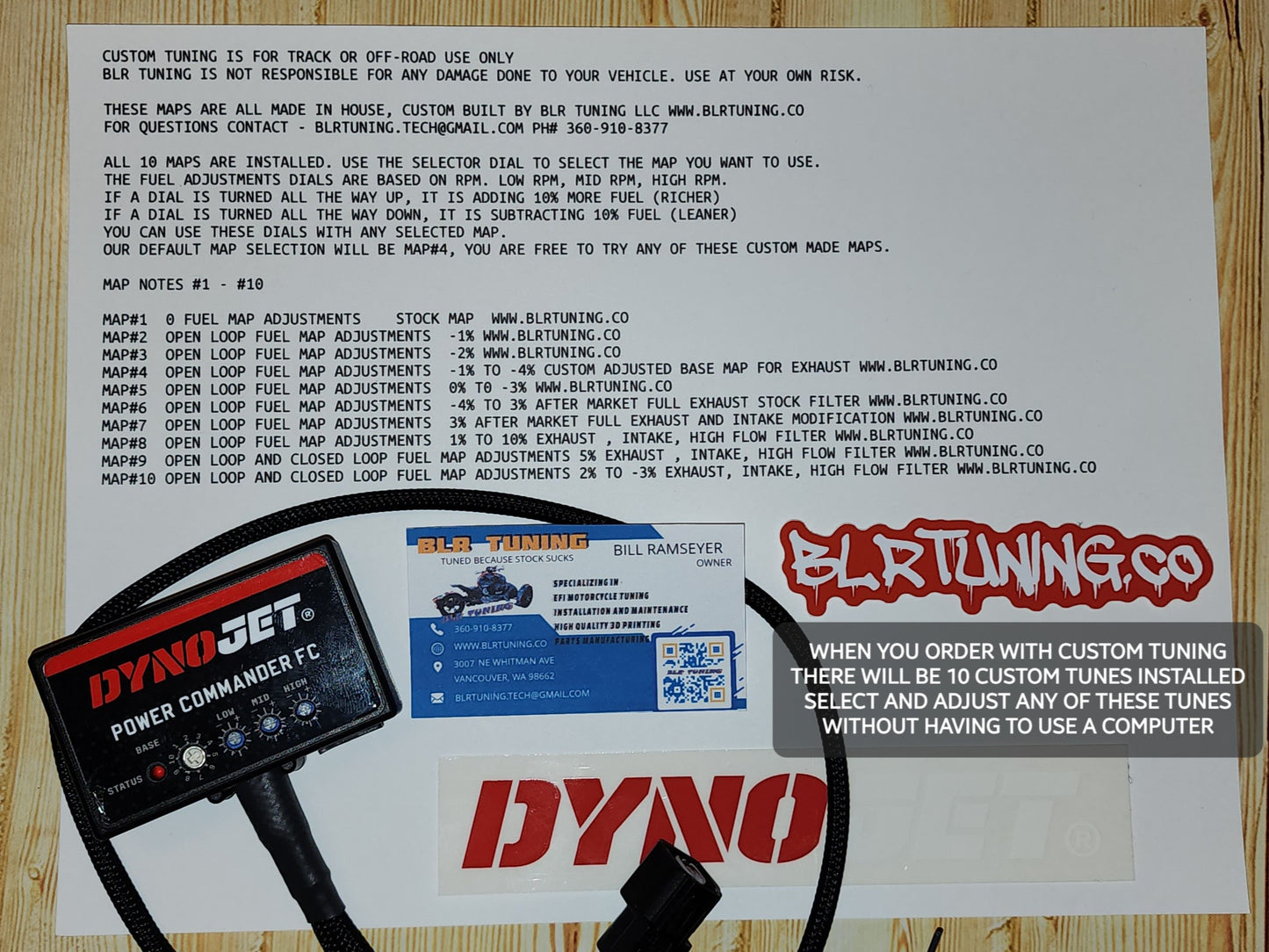

HERE IS WHAT WILL BE PRINTED OUT IN THE BOX IF YOU PURCHASE WITH CUSTOM TUNING INSTALLED -

CUSTOM TUNING IS FOR TRACK OR OFF-ROAD USE ONLY
BLR TUNING IS NOT RESPONSIBLE FOR ANY DAMAGE DONE TO YOUR VEHICLE. USE AT YOUR OWN RISK.

THESE MAPS ARE ALL MADE IN HOUSE, CUSTOM BUILT BY BLR TUNING LLC WWW.BLRTUNING.CO
FOR QUESTIONS CONTACT - BLRTUNING.TECH@GMAIL.COM PH# 360-910-8377

WHEN CUSTOM TUNING IS SELECTED IN YOUR ORDER -
ALL 10 MAPS ARE INSTALLED. USE THE SELECTOR DIAL TO SELECT THE MAP YOU WANT TO USE.
THE FUEL ADJUSTMENTS DIALS ARE BASED ON RPM. LOW RPM, MID RPM, HIGH RPM.
IF A DIAL IS TURNED ALL THE WAY UP, IT IS ADDING 10% MORE FUEL (RICHER)
IF A DIAL IS TURNED ALL THE WAY DOWN, IT IS SUBTRACTING 10% FUEL (LEANER)
YOU CAN USE THESE DIALS WITH ANY SELECTED MAP.
OUR DEFAULT MAP SELECTION WILL BE MAP#4, YOU ARE FREE TO TRY ANY OF THESE CUSTOM MADE MAPS.


WE CHARGE $190 TO SEND YOU THESE MAPS VIA EMAIL IF YOU ALREADY OWN THE PCFC. FOR THAT REQUEST PLEASE EMAIL US - BLRTUNING.TECH@GMAIL.COM


MAP NOTES #1 - #10

MAP#1 0 FUEL MAP ADJUSTMENTS STOCK MAP WWW.BLRTUNING.CO
MAP#2 OPEN LOOP FUEL MAP ADJUSTMENTS -1% WWW.BLRTUNING.CO
MAP#3 OPEN LOOP FUEL MAP ADJUSTMENTS -2% WWW.BLRTUNING.CO
MAP#4 OPEN LOOP FUEL MAP ADJUSTMENTS -1% TO -4% CUSTOM ADJUSTED BASE MAP FOR EXHAUST WWW.BLRTUNING.CO
MAP#5 OPEN LOOP FUEL MAP ADJUSTMENTS 0% T0 -3% WWW.BLRTUNING.CO
MAP#6 OPEN LOOP FUEL MAP ADJUSTMENTS -4% TO 3% AFTER MARKET FULL EXHAUST STOCK FILTER WWW.BLRTUNING.CO
MAP#7 OPEN LOOP FUEL MAP ADJUSTMENTS 3% AFTER MARKET FULL EXHAUST AND INTAKE MODIFICATION WWW.BLRTUNING.CO
MAP#8 OPEN LOOP FUEL MAP ADJUSTMENTS 1% TO 10% EXHAUST , INTAKE, HIGH FLOW FILTER WWW.BLRTUNING.CO
MAP#9 OPEN LOOP AND CLOSED LOOP FUEL MAP ADJUSTMENTS 5% EXHAUST , INTAKE, HIGH FLOW FILTER WWW.BLRTUNING.CO
MAP#10 OPEN LOOP AND CLOSED LOOP FUEL MAP ADJUSTMENTS 2% TO -3% EXHAUST, INTAKE, HIGH FLOW FILTER WWW.BLRTUNING.CO

WHILE WE DO SELL THE PCFC WITH OUR 10 CUSTOMIZABLE TUNES INSTALLED AT A DISCOUNTED PRICE. WE CAN ALSO EMAIL THESE 10 TUNES TO YOU IF YOU ALREADY OWN A PCFC OR PURCHASED IT SOMEWHERE ELSE. THIS COST IS $190. FOR THAT PRICE YOU WOULD GET ALL 10 OF OUR CUSTOM TUNES THAT YOU SEE LISTED IN THIS DESCRIPTION. THEY WOULD ALL BE SENT TO YOU VIA EMAIL. YOU WOULD THEN DOWNLOAD THEM TO A WINDOWS COMPUTER OR LAPTOP AND MOVE THEM OVER TO YOUR PCFC USING THE DYNOJET C3 SOFTWARE FOUND IN POWER CORE WHICH IS FREE TO DOWNLOAD FROM THEIR WEBSITE. FOR INQUIRIES ABOUT ORDERING THE 10 CUSTOM TUNES FOR YOUR PCFC PLEASE SEND US AN EMAIL.

IF YOU NEED A VERY SPECIFIC CUSTOM TUNE, OR SET OF TUNES MADE THEN PLEASE EMAIL US. WE DO OFFER CUSTOM TUNING FOR THIS DEVICE, EVEN IF YOU DIDN'T GET IT FROM US. WE CAN BUILD A CUSTOM TUNE AND SEND IT OUT VIA EMAIL.
